220W Solar Kit 220W Solar Kit

  • Model #: 230510-2
  • Barcode: 850045750848
RVMP Solar ®

Buy RVMP Solar™ 220W Single Panel Solar Kit | Off-Grid Solar Kit - 220W | Off-Grid, RV, Camping, Home, Backup by RVMP: 220W Solar Kit 220W Solar Kit

  • Model #: 230510-2
  • Barcode: 850045750848
RVMP Solar ®

RVMP Solar™ provides multiple options in solar integration for all your off-grid clean energy needs to get out and stay out. This 200W Solar Kit comes with everything you need to harvest power from the sun.

Price: $395.00
Details

RVMP Solar™ provides multiple options in solar integration for all your off-grid clean energy needs to get out and stay out.

Our solar panels are at the forefront of innovation in solar modules and PV energy. The technology in our solar panels utilizes the latest advancements to provide the most efficient power that is derived directly from the sun.

All our panels are inspected prior to shipping to ensure the best quality.

We include a 5-year warranty on PV modules.

Solar Kits come ready to install with:

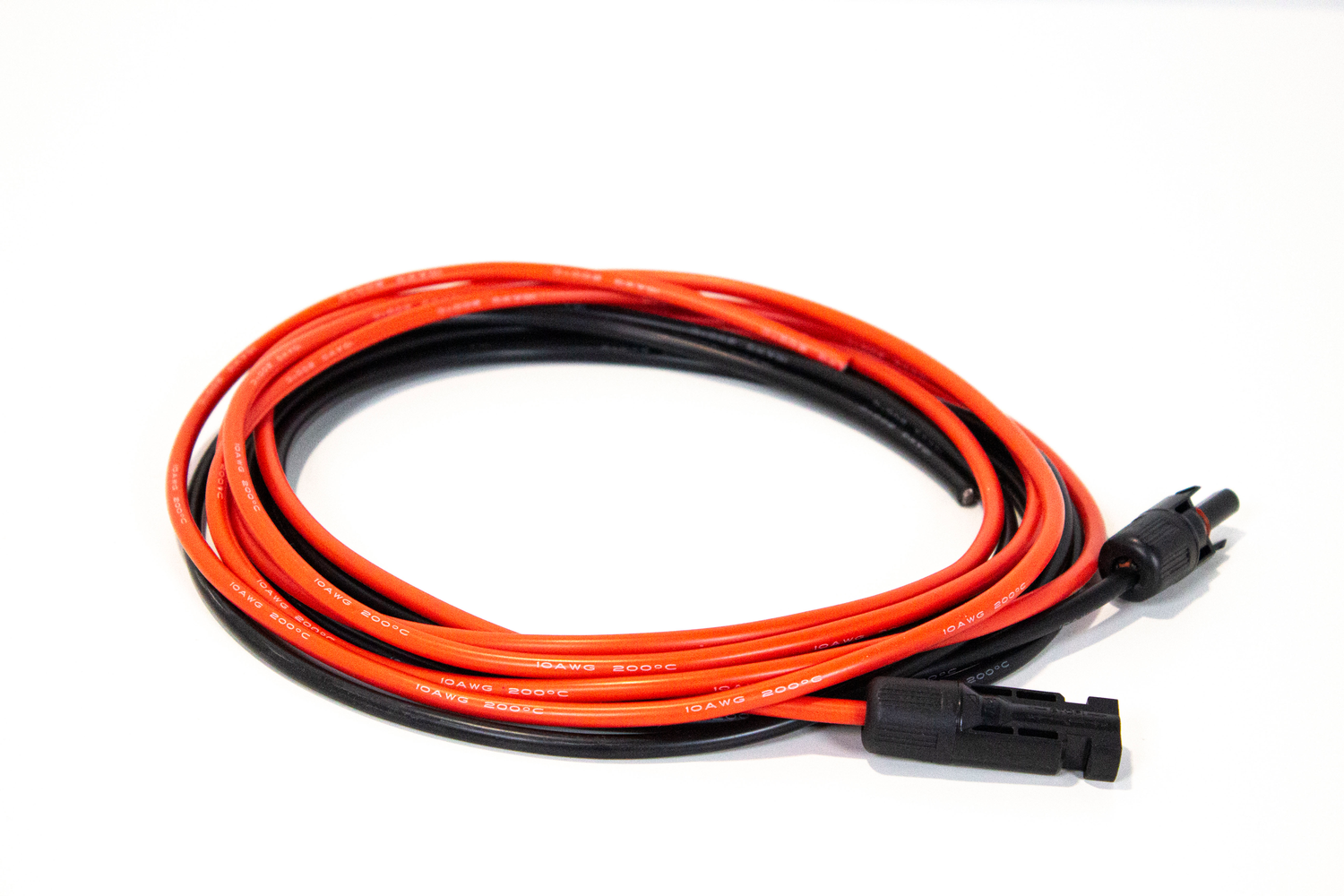

  • Cables
    • 10 AWG Stranded Solar Cable
    • Comes in 10', 15', 20', and 30' lengths (customizable if high quantities are needed)
    • Lengths come in two cables (one red and one black)
    • The kits come with just one black and one red cable with an MC4 connector pre-installed

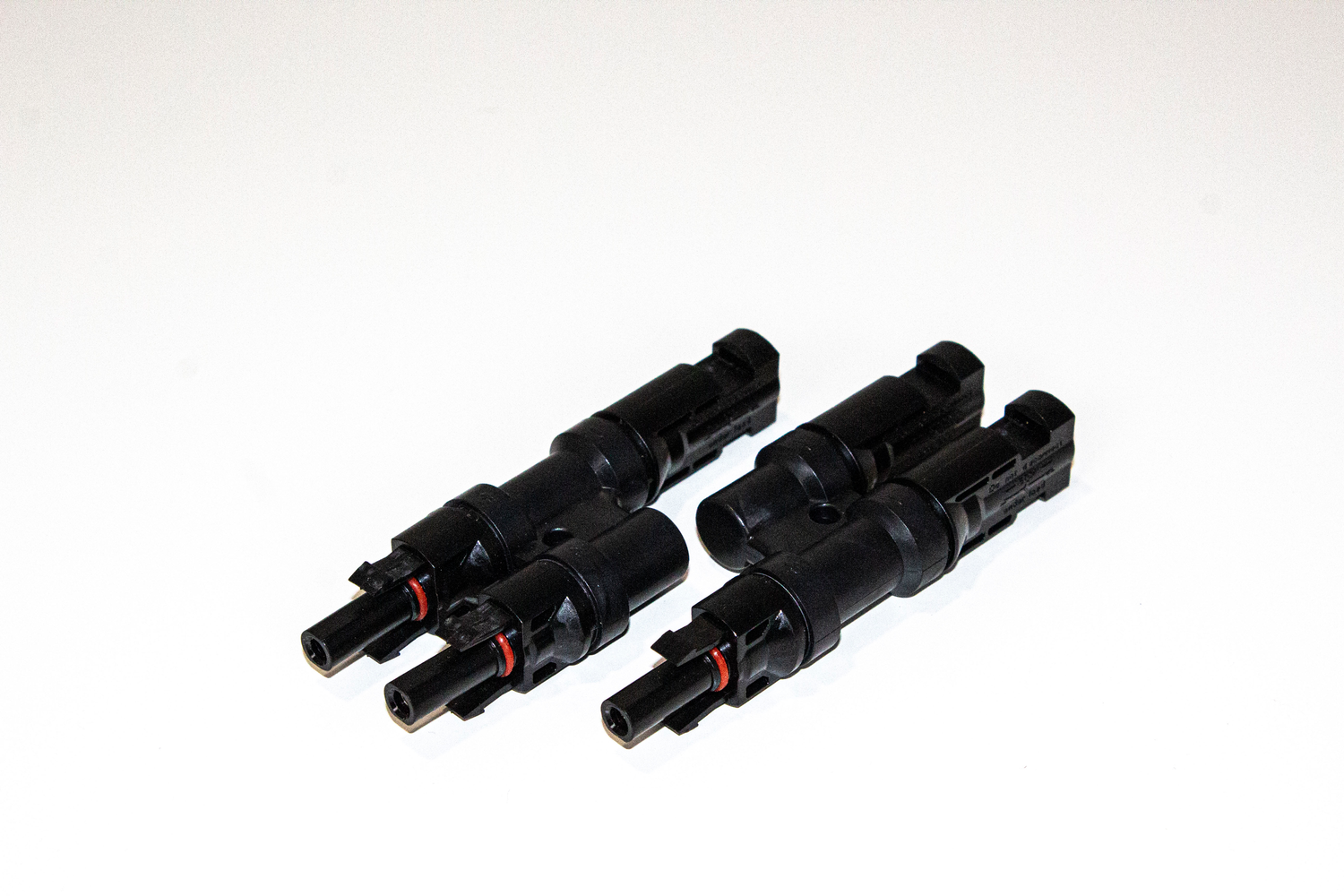

  • Connectors
    • MC4 connectors
    • Pre-installed on cables, can be separated if needed

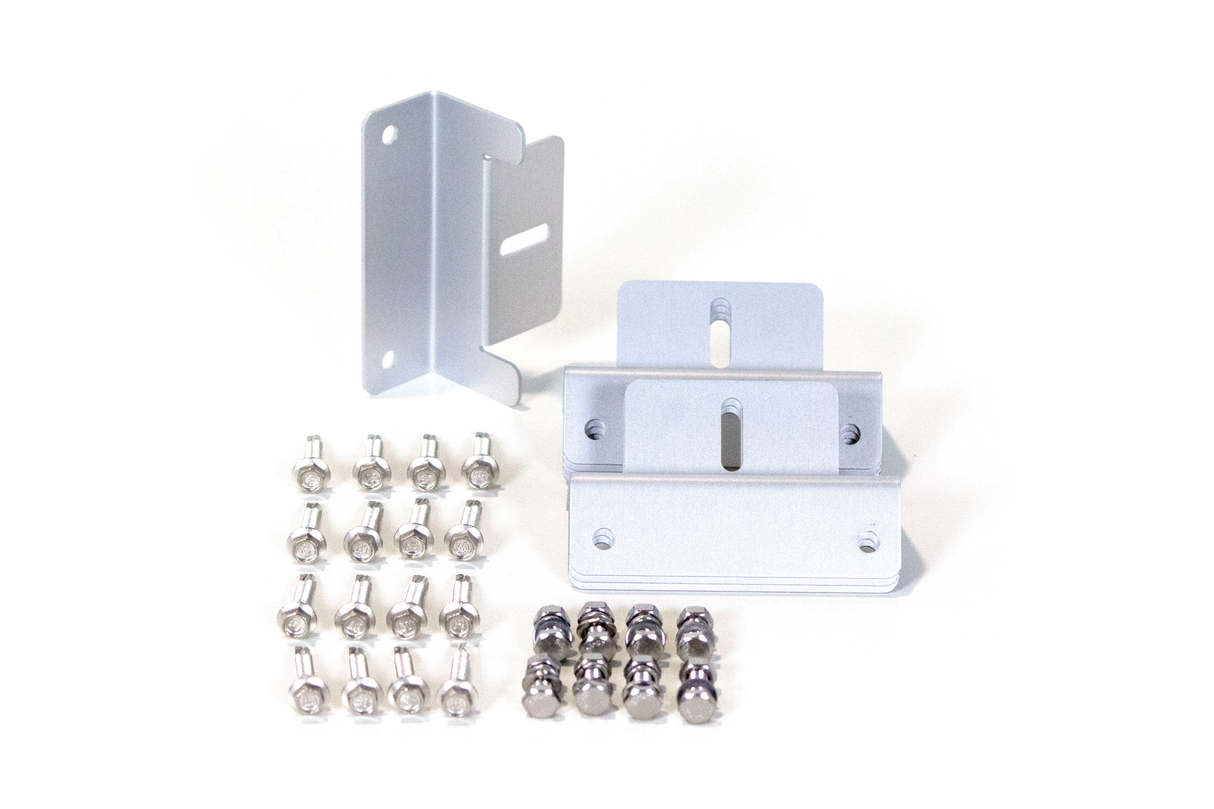

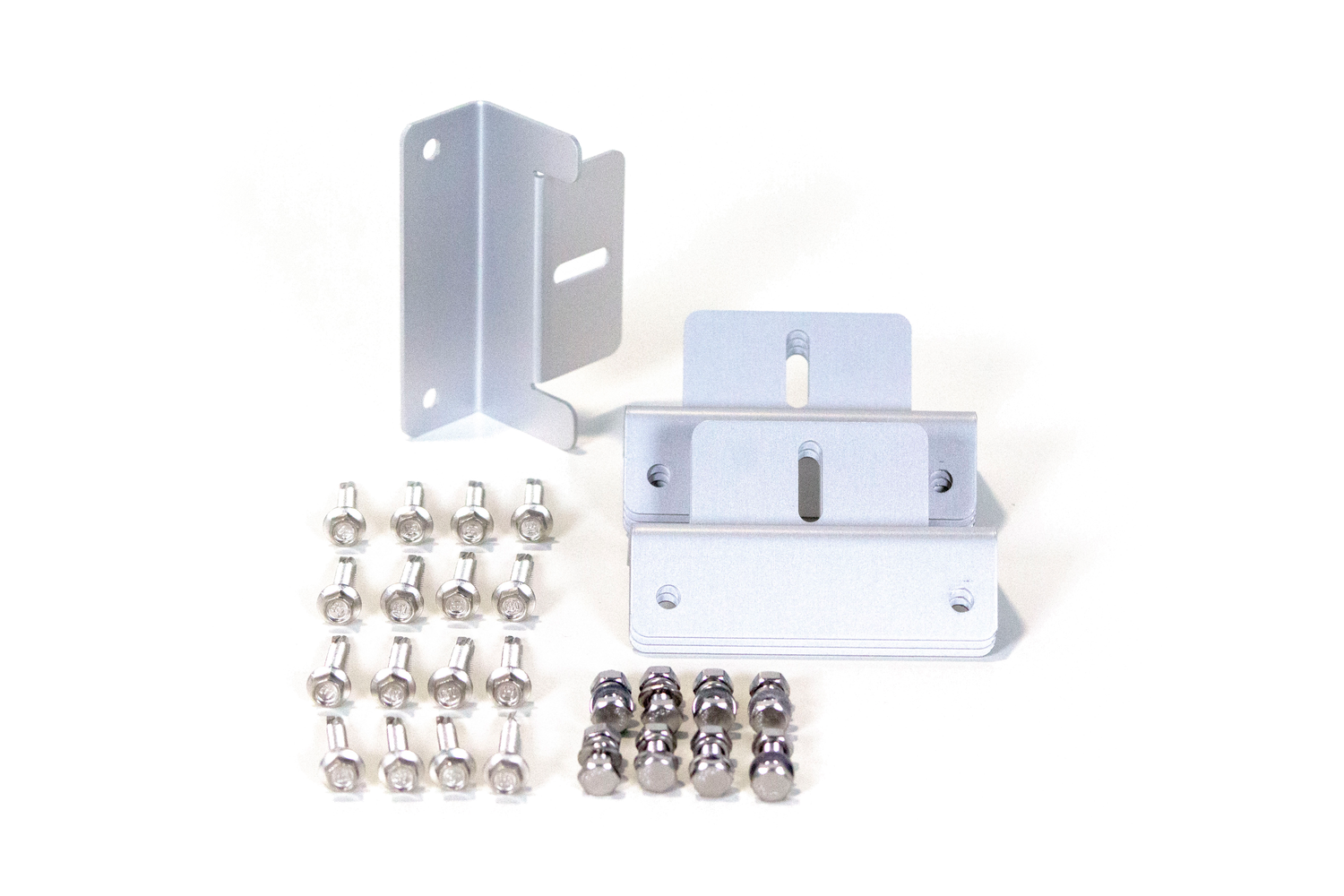

  • Mounting Hardware
    • Solar Mount Z Brackets (with a fork that stops the panel or bracket from swiveling)
    • M6 bolts, with washer, lock washer, and nut
    • Self-taping screws with plastic washer
    • Rubber strip between the bracket and the solar panel frame

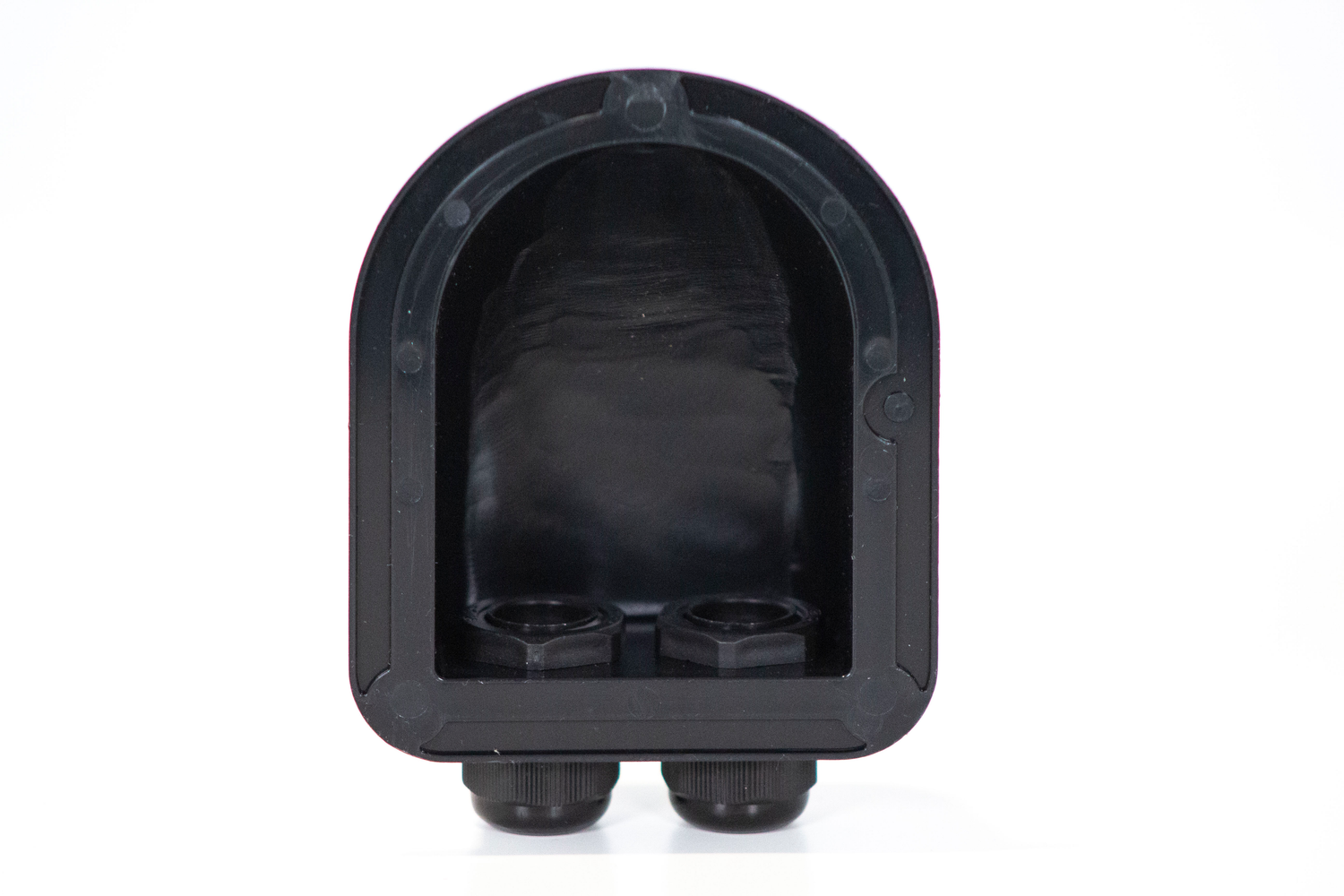

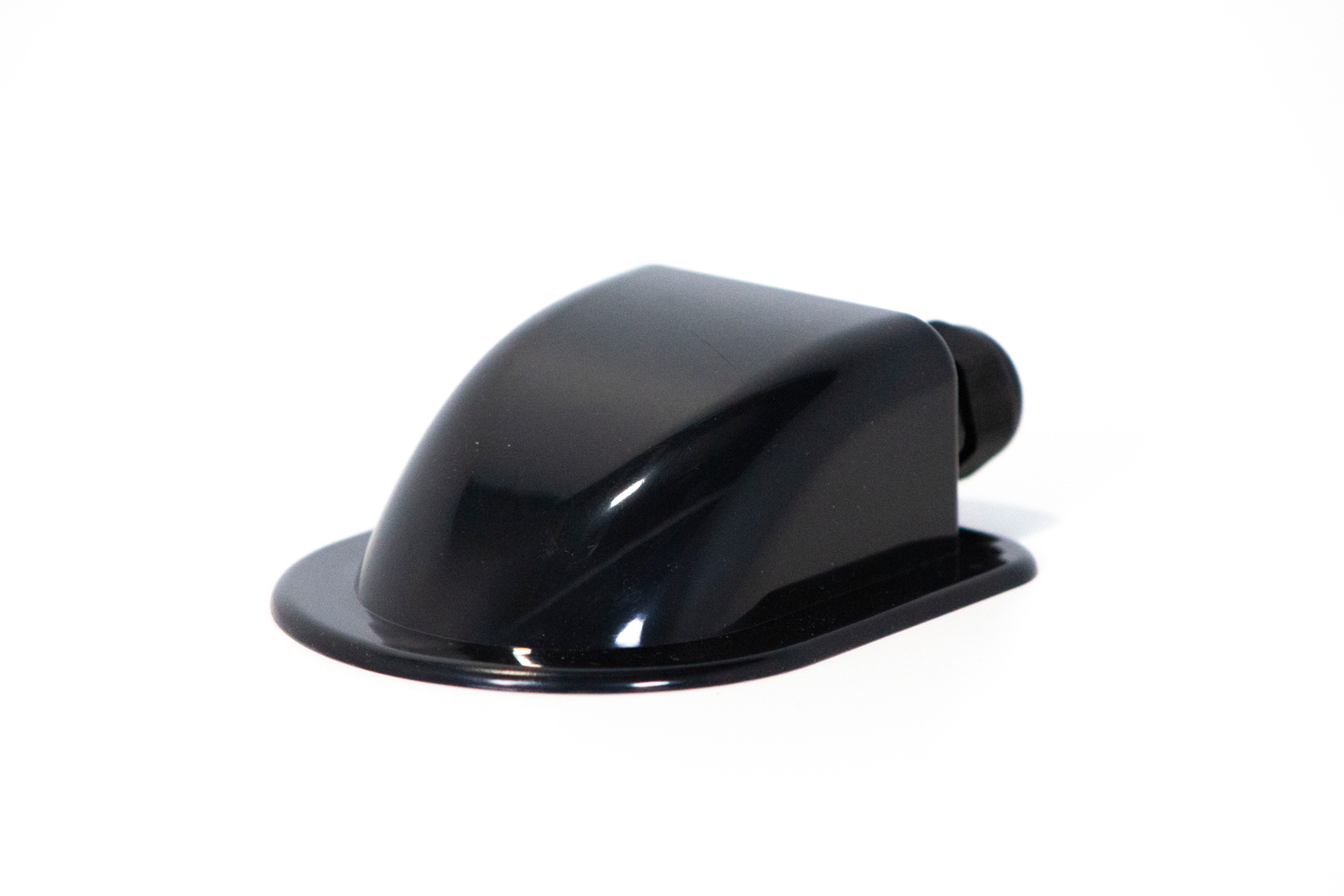

  • Roof port
    • 1 5/8" tall, 3 5/8" wide, 5" long
    • White

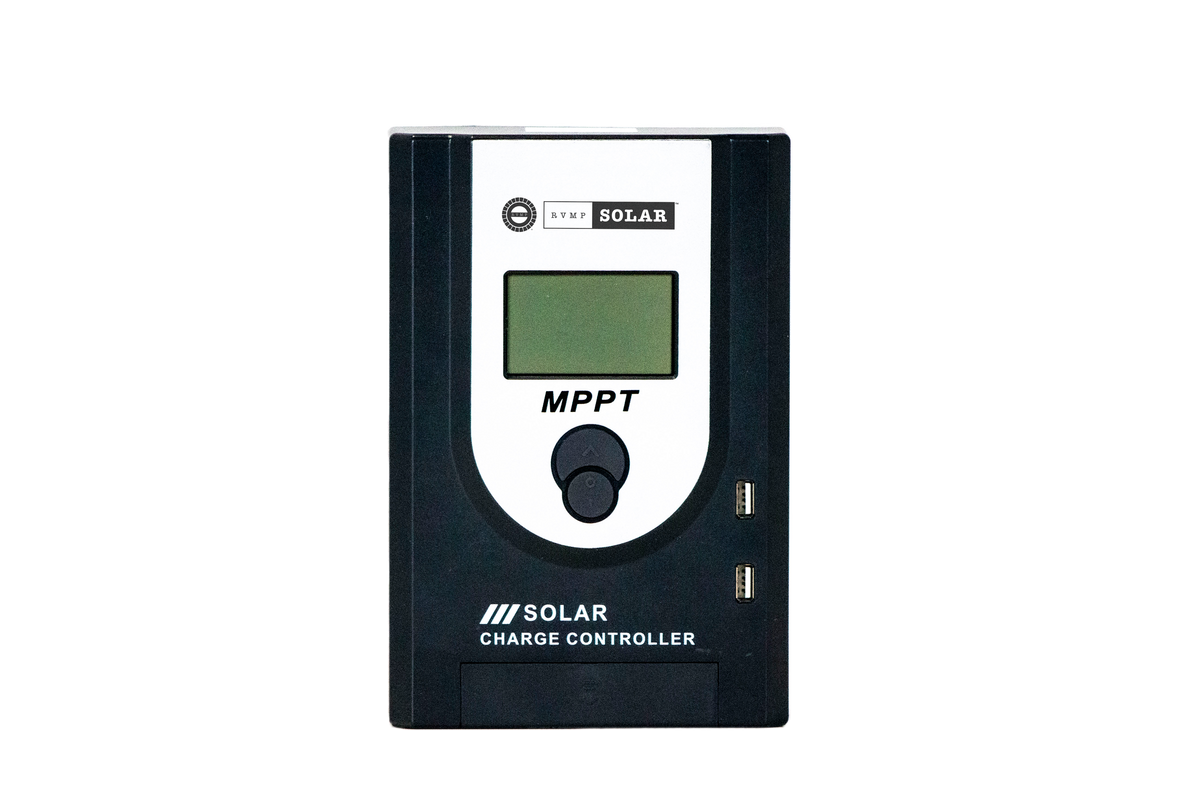

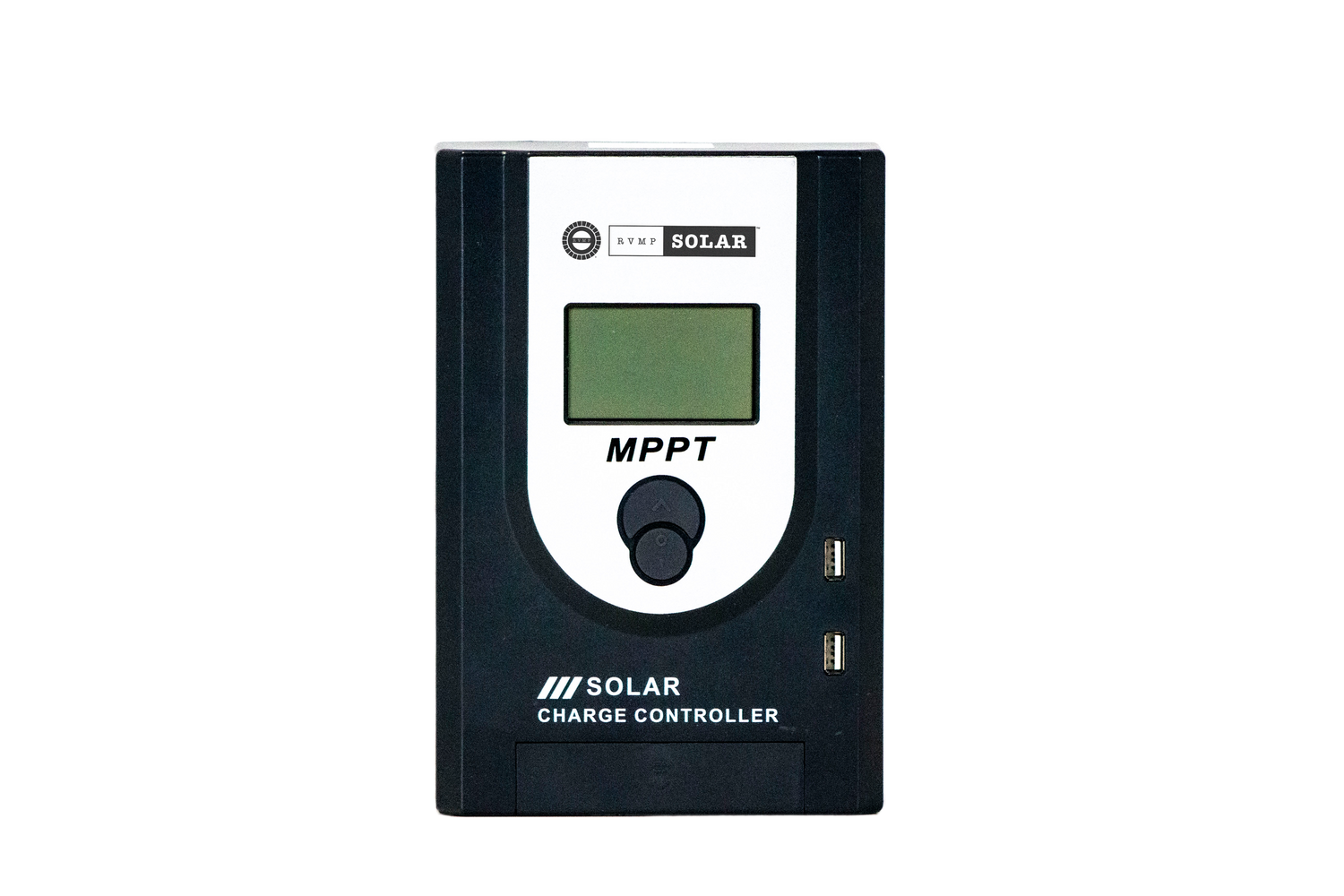

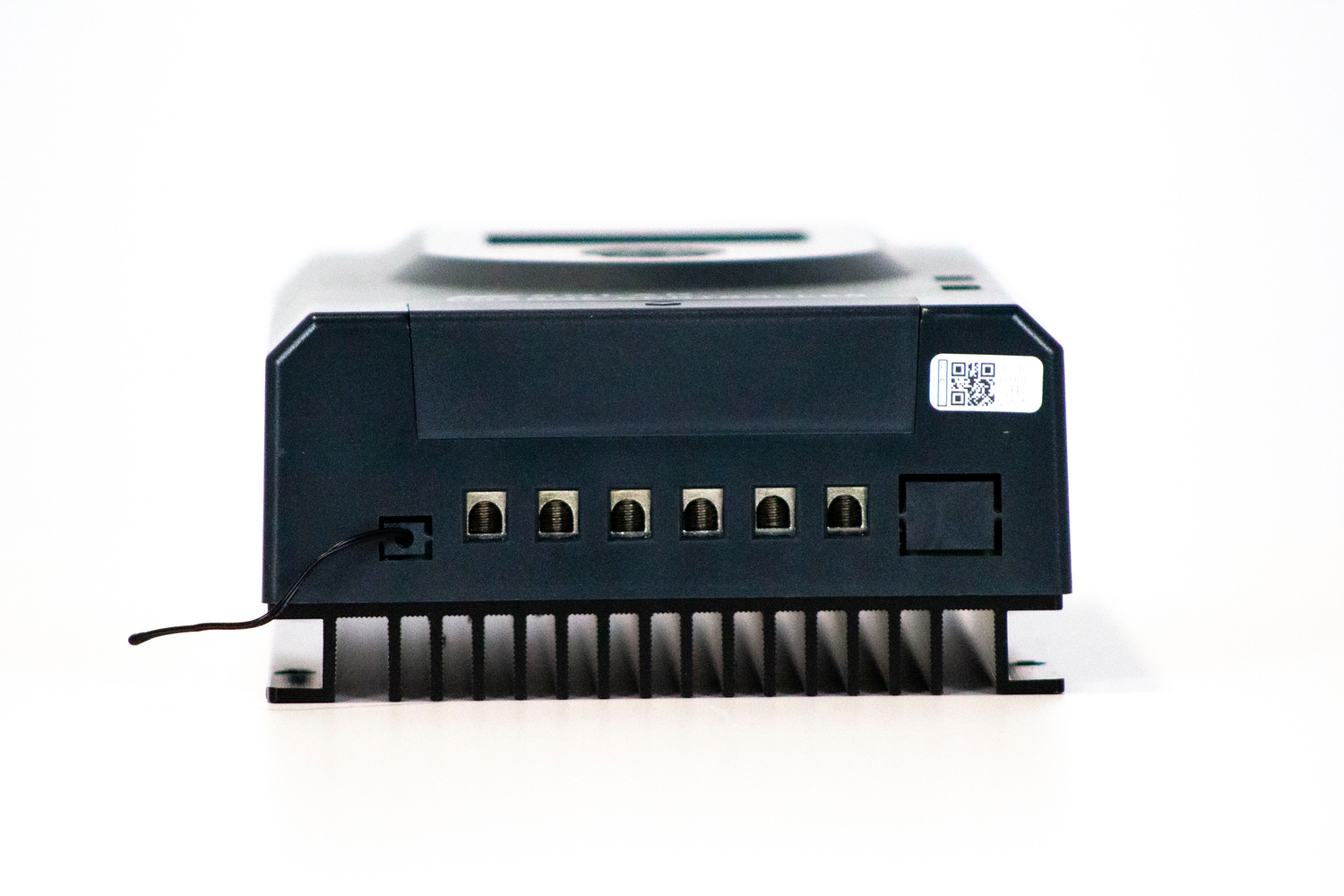

  • Charge Controller
    • MPPT 40A, Max PV Voltage 150 V, Rated Voltage 12V/24V, Max PV Input Power 520W(12V) 1040W(24V)
Features

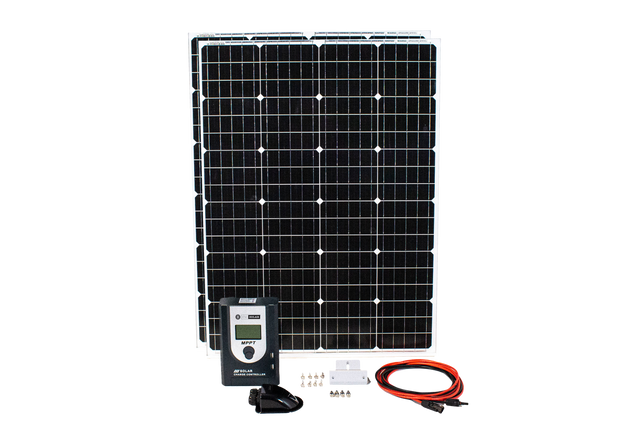

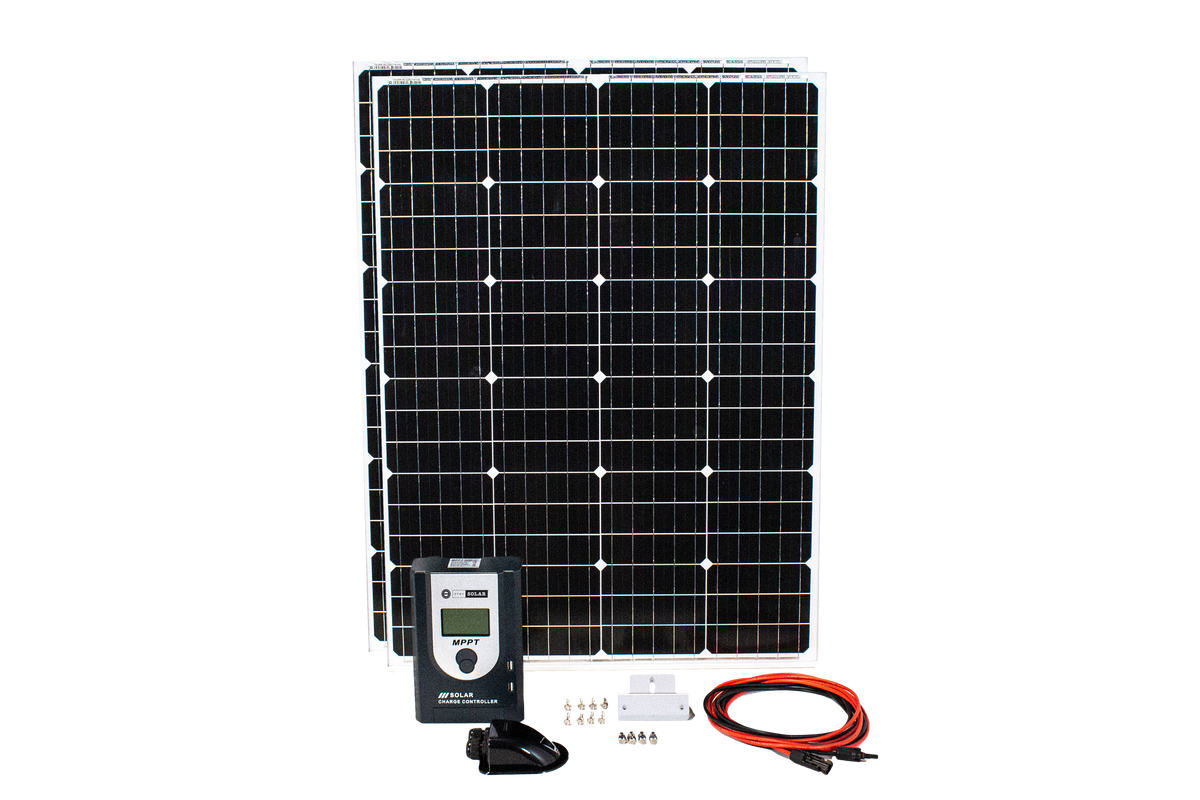

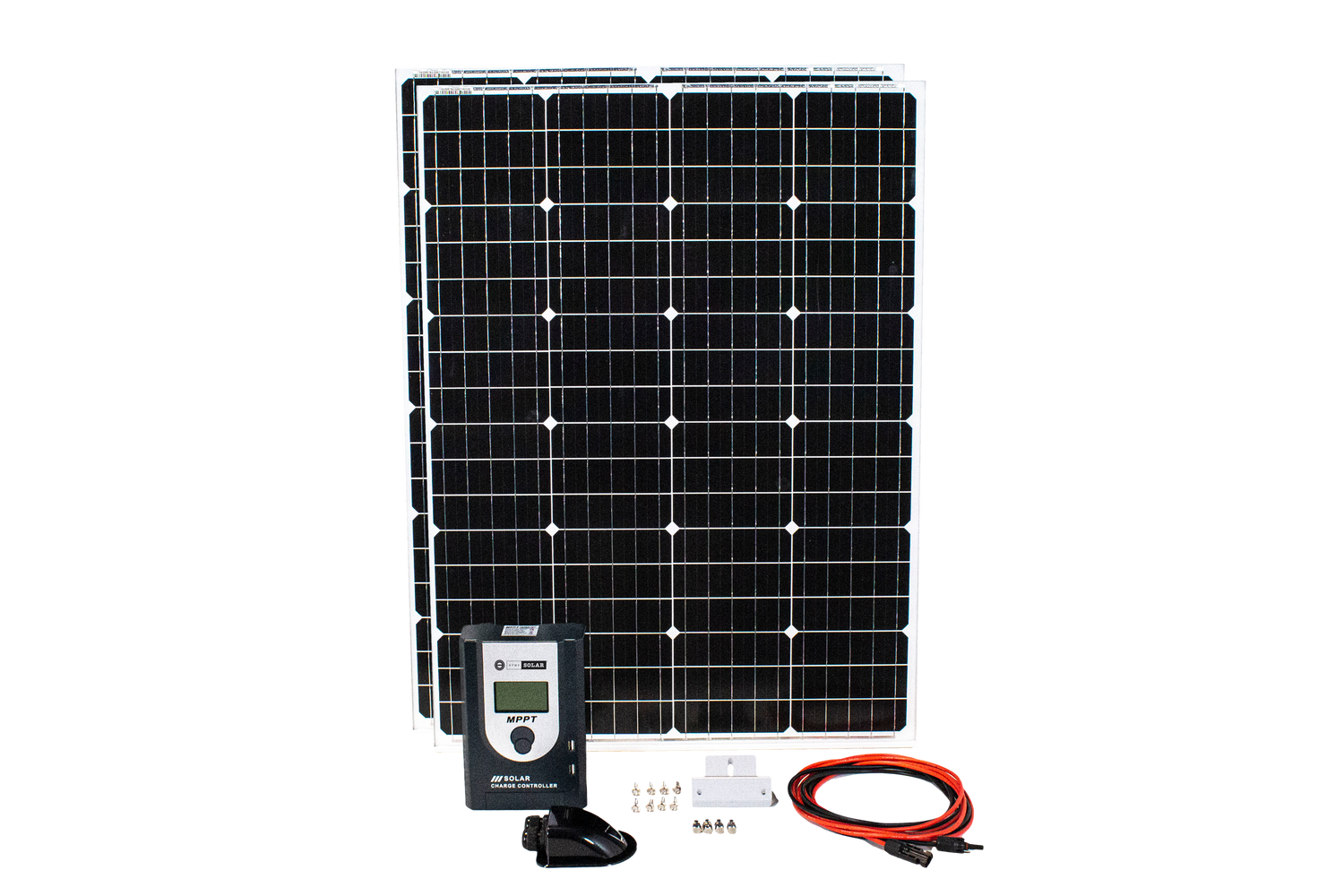

  • Solar Kit with two (2) 100W Panels, Cables, Connectors, Mounting Hardware, Roof Port for RV, and Charge Controller
  • 100W Solar Panel has CE and Insulated certification s
  • Charge controller has ISO, CE, IEC, and RoHS certifications
  • Charge Controller is MPPT 40A

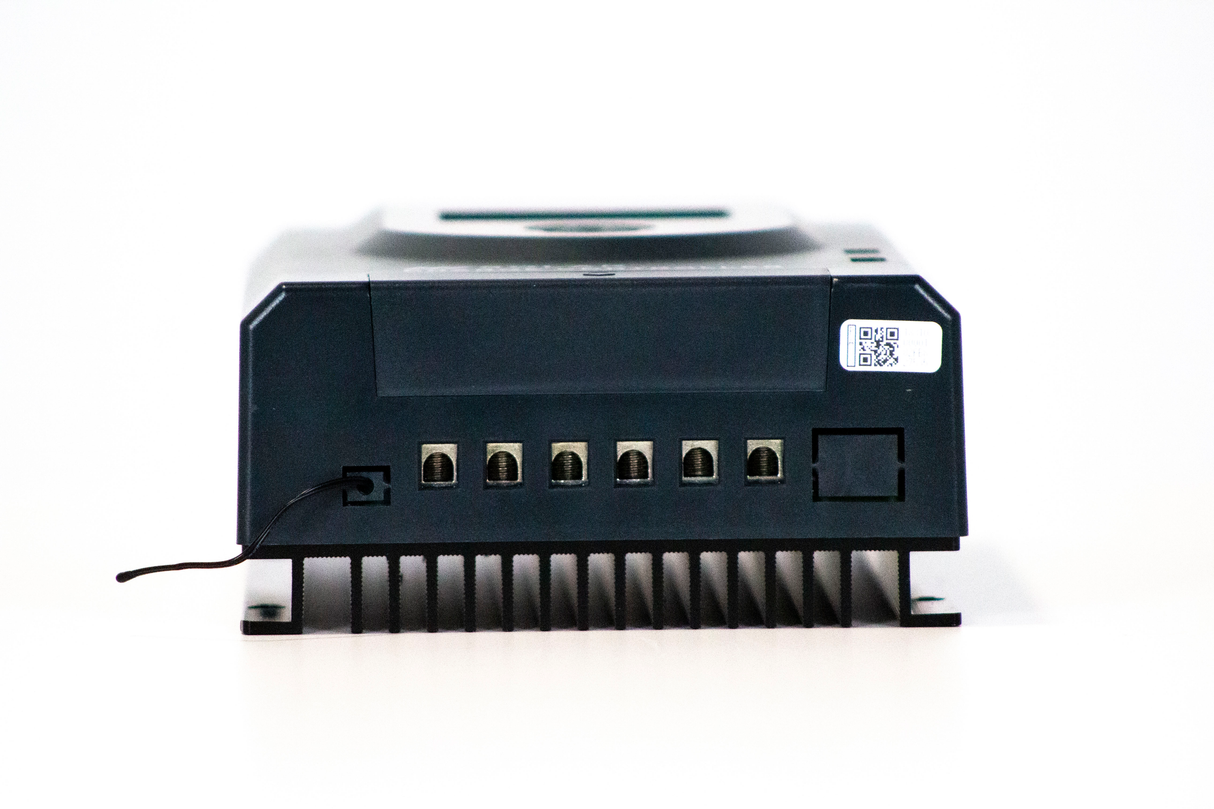

  • Charge Controller has built in temperature sensor, heat sync on the back, built in fan on the top, with ventilation out the two sides
  • MPPT has two USB connectors (5V 2A)
  • Easy to clean with snap-on cover for connectors providing easy access to wires and hardware
  • 5-year warranty
Specs
  • Panel Dimensions: 55.51"(L) 1.38"(W) 27.56"(H) (1410mm x 35mm x 700mm)
  • Panel Weight: 24 lbs (10.9 kg)
  • Panel Max Voltage: 19.7V
  • Panel Max Current: 11.2A
  • Panel Open Circuit Voltage: 22.6V
  • Panel Short Circuit Current: 11.6A
  • Panel Connectors: Preinstalled 35.43" (900mm) MC4
  • Cable Type: 10 AWG Stranded Solar Cable
  • Cable Length: 10’, 15’, 20’, and 30’ lengths
  • Mounting Hardware: Solar Mount Z Brackets (with a fork that stops the panel or bracket from swiveling)
  • Bolts: M6 bolts, with washer, lock washer and nut
  • Roof Port Dimensions: 1.625" tall, 3.625" wide, 5" long
  • Charge Controller: MPPT 40A
  • Charge Controller Max PV Voltage: 100 V
  • Charge Controller Rated Voltage: 12V/24V
  • Charge Controller Max PV Input Power: 520W(12V) 1040W(24V)
Includes
  • One (1) 220W Solar Panel
  • Two (2) 10 AWG Stranded Solar Cable in black and red
  • MC4 connectors (pre-installed, can be separate if needed)
  • Solar Mount Z Brackets
  • M6 bolts, with washer, lock washer and nut
  • Self-taping screws with plastic washer
  • Rubber strip that will go between the bracket and the solar panel frame
  • Roof Port
  • MPPT 40A Charge Controller
