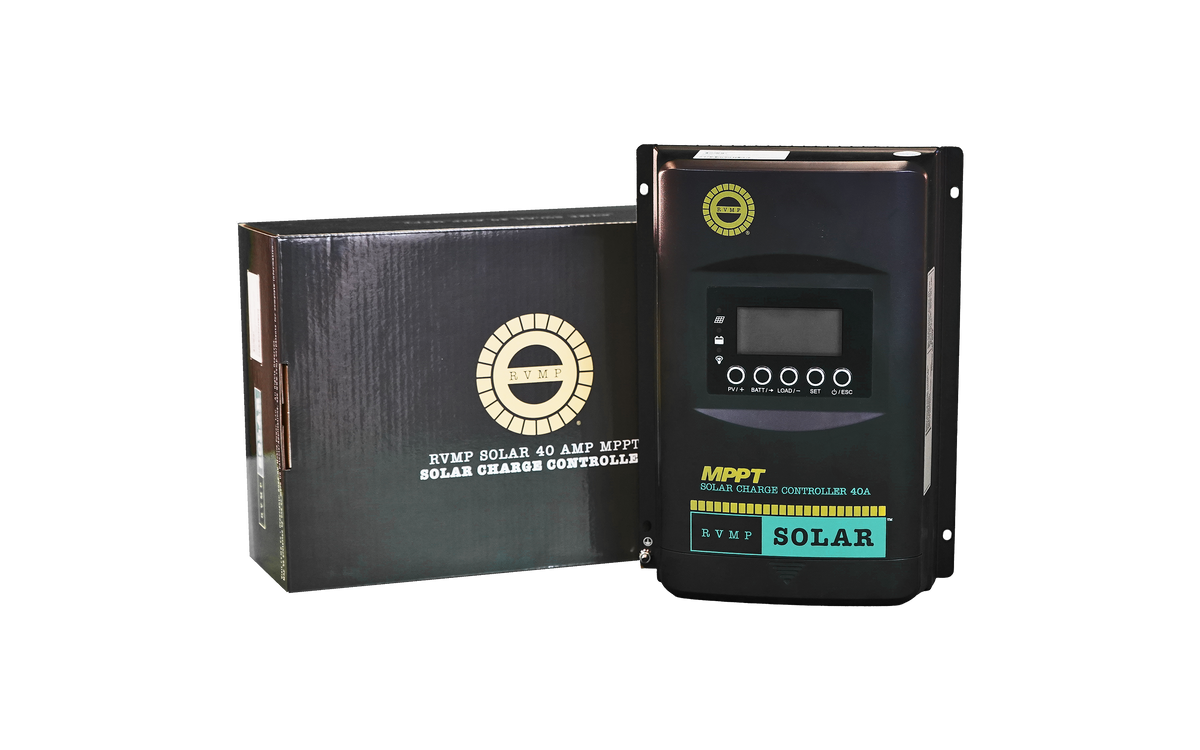

40 Amp MPPT Solar Charge Controller 40 Amp MPPT Solar Charge Controller

  • Model No: RVMP-220450
  • SKU: 850041427027
RVMP Solar
In Stock . // Ready to ship.

Buy RVMP Solar 40 Amp MPPT Solar Charge Controller by RVMP: 40 Amp MPPT Solar Charge Controller 40 Amp MPPT Solar Charge Controller

  • Model No: RVMP-220450
  • SKU: 850041427027
RVMP Solar
In Stock // Ready to ship.

40-Amp solar controller with MPPT technology optimizes solar panel output to provide maximum amperage to your batteries. Protects battery from harmful overcharging. Durable, fully sealed construction is perfect for industrial and commercial vehicles.

Price: $155.00
Details

The RVMP Solar 40 Amp MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method. Limiting the charging power & current and reducing charging power functions ensure the system stable with over PV modules in high temperature environment. IP33 Ingress protection and isolated RS485 design further improve the controller’s reliability and meet the different application requirements. The RVMP Solar 40 Amp MPPT Solar Charge Controller owns self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of battery and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over-discharge, PV & battery reverse polarity etc. to ensure the solar system more reliable and more durable. This controller can be widely used for RV, household system, field monitoring and many other applications.

Features
  • Increase Battery Life and Performance
  • Maximize your solar power system performance
  • Minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions
  • Five buttons for parameters setting and monitoring - More Safety Protection Functions
  • Increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method
  • Three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of battery and significantly improve the system performance
  • Can be widely used for RV, household system, field monitoring and many other applications
  • CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)
  • 100% charging and discharging in working environment temperature range
  • High quality and low failure rate components of ST or IR to ensure service life
  • Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%
  • Maximum DC/DC transfer efficiency is as high as 98.5% and full load efficiency is up to 97.2%
  • Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
  • Accurate recognizing and tracking of multi-peaks maximum power point
  • Wide MPP operating voltage range
  • Support the lead-acid and lithium batteries; voltage parameters can be set on the controller
  • Programmable temperature compensation
  • Limit charging power & current overrated value
  • Real-time energy statistics function
  • Power reduction automatically over temperature value
  • Multiple load work modes
  • Comprehensive electronic protection
  • Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
  • Support monitoring and setting the parameters via APP or PC software
  • IP33 ▲ Ingress protection
Specs
  • ["Rated charge and discharge current: 40 Amp","MPPT Tracking efficiency: ≥99.5% , Max. conversion efficiency :98%","Nominal system voltage: 12V/24V DC auto work","Max. PV input power: 520W charge for 12V battery system / 1040W charge for 24V battery system","Max. PV open circuit voltage: 100V (at minimum operating environment temperature) 92V (at 25°C environment temperature)","Battery voltage range: 8~32V","MPP voltage range: V(BAT+2V)~72V","Grounding: Common negative grounding","Working environment temperature: -25°C~+50°C","Storage temp. range: -20°C -- +70°C/-4°F -- 158°F","LCD backlight time: 60S (Default)","Mounting hole size: Φ5mm","Dimension: 255x185x67.8mm","Weight: 1.70kg"]
  • Mounting Dimension: 200×176mm
